M O D E L : E - 8 D C S L I D I N G G A T E
Mo t o r S p e c i f i c a t i o n
Power Supply AC 220-240V, 50Hz , Single Phase
Operating Voltage DC 24V for Normal Speed
DC 12V for Cushioning Speed
Motor Type Oil Bath Gear Motor
Motor Rotation Speed 3000 rpm
Operating Ambient
Temperature -20ºC to 80ºC
Power Absorb 150 Watts
Maximum Gate Weight 600kg Force Adjustable
Gate Speed 15 Meter / min
Safety Clutch Electronic Counter Technology Auto Reverse
Protection Class IP24
Remote Controll 2 - Channel , 330 MHz UHF
Manual Override Special Release Key for Power Failure
DC Sliding
1 Gear Box 18 Gear Cover
2 Oil Seal TC 17 x 35 x7 19 Screw 10 x 3/4"
3 Bearing 6203-2RS 20 Pin 41.2mm x 6.9mm
4 Lock 21 Gear Wheel
5 Oil Seal 2008 22 Circlip A18
6 Circlip A20 23 Release Key
7 Pin 50mm x 6mm 24 Top Cover Screw & Nut
8 Clutch Plate 25 Oil Seal 2112
9 Clutch Plate Washer 26 Input Shaft
10 Steel Ball 27 Plastic Washer
11 Worm Gear 28 Motor 24 VDC
12 Cap Screw m 3 x 8 29 Screw 12 x 3/4"
13 Release Platr 30 Top Cover
14 Magnet 18mm x 4mm 31 Magnetic Counter Sensor
15 Pin 52mm x 6.9mm 32 Connector
16 Output Shaft 33 Noise Filter
17 Oil Seal G70
Juno
JUNO 700 Kg
Specifications JUNO 700
Operator technical speccifications
Model TYPE JUNO 700
Power supply 220 Vac / 50 Hz
Absorbed power 370 W
Output torque 22 Nm
Thermal cutout -20ºC to 80ºC
Capacitor 16 uF / 450 V
Gear motor type Oil Bath
Outer case material Aluminum Alloy
Housing protection IP 44
Electric motor rpm 1400 rpm
Max weight of Gate 700 kg
Weight of Gate Force Adjustable
Motor weight 20 kg
Motor Speed 12 m / min
Pinion Gear Z 19
Limit Switch by Magnetic
Manual by key
Control Microprocessor
Reciever 433.92 MHz 3 chn
Remote controller 433.92 MHz 3 chn
Safety Photocell infared ( Option )
Signal Flashing light ( Option )
Switch manaul Push Button
Certificate CCC CE
JUNO 1000 Kg
Specifications JUNO 1000
Operator technical speccifications
Model TYPE JUNO 1000
Power supply 220 Vac / 50 Hz
Absorbed power 370 W
Output torque 27 Nm
Thermal cutout -20ºC to 80ºC
Capacitor 20 uF / 450 V
Gear motor type Oil Bath
Outer case material Aluminum Alloy
Housing protection IP 44
Electric motor rpm 1400 rpm
Max weight of Gate 1000 kg
Weight of Gate Force Adjustable
Motor weight 18 kg
Motor Speed 12 m / min
Pinion Gear Z 19
Limit Switch by Magnetic
Manual by key
Control Microprocessor
Reciever 433.92 MHz 3 chn
Remote controller 433.92 MHz 3 chn
Safety Photocell infared ( Option )
Signal Flashing light ( Option )
Switch manaul Push Button
Certificate CCC CE
JUNO 2000 Kg
Specifications JUNO 2000
Operator technical speccifications
Model TYPE JUNO 2000
Power supply 220 Vac / 50 Hz
Absorbed power 450 W
Output torque 45 Nm
Thermal cutout -20ºC to 80ºC
Capacitor 35 uF / 450 V
Gear motor type Oil Bath
Outer case material Aluminum Alloy
Housing protection IP 44
Electric motor rpm 1400 rpm
Max weight of Gate 2000 kg
Weight of Gate Force Adjustable
Motor weight 20 kg
Motor Speed 12 m / min
Pinion Gear Z 19
Limit Switch by Magnetic
Manual by key
Control Microprocessor
Reciever 433.92 MHz 3 chn
Remote controller 433.92 MHz 3 chn
Safety Photocell infared ( Option )
Signal Flashing light ( Option )
Switch manaul Push Button
Certificate CCC CE
Powertech
POWERTECH PL 600 Kg , 1000 Kg
* ชุดอุปกรณ์มาตรฐานมอเตอร์,แผงคอนโทรล,แบตเตอรรี่ 2 ก้อน,รีโมท 3 ตัว ,เฟืองสะพาน 4 เมตร ไม่รวมค่าติดตั้ง และอุปกรณ์เสริม ราคาพิเศษ!!
PL 600 Sliding Gate Openers
For per gate leaf :
Max weight : 600 Kg Max Length : 6-8 m
*มอเตอร์ DC 24V ปลอดภัยจากไฟฟ้าดูด 100%
*แบตเตอรี่สำรองพร้อมใช้งานกรณีไฟฟ้าดับ(ภายในมอเตอร์)
*ตัวถังด้านล่างผลิตจากอลูมิเนียมอัลลอยหล่อขึ้นรูป
*ระบบ Slow-Down ก่อนประตูปิดสุด
*ตัดการทำงานด้วยระบบ ลิมิทสวิทซ์
*ติดตั้งง่ายโดยรวมแผงคอนโทรลในตัวมอเตอร์
*ระยะควบคุมรีโมท 50-100 เมตร
Control Board
*ระบบควบคุมแบบ ดิจิตอล พร้อมหน้าจอแสดงผลแบบ LED
*ชุดรีโมท และเสาอากาศแบบแยกชิ้น
*Function ตั้งเวลาปิด (Auto-Close)
*Function ปรับความเร็วมอเตอร์ 4 ระดับ
*Function ปรับกำลังมอเตอร์ (Force) 9 ระดับ
*Function ปรับทิศทางปิด-เปิด(ไม่ต้องสลับสายมอเตอร์)
*Function เปิดประตูบางส่วน(แบบไม่ต้องการเปิดเต็มบานจนสุด)
*รองรับรีโมทสูงสุดถึง 200 อัน
PH-1
Photocells

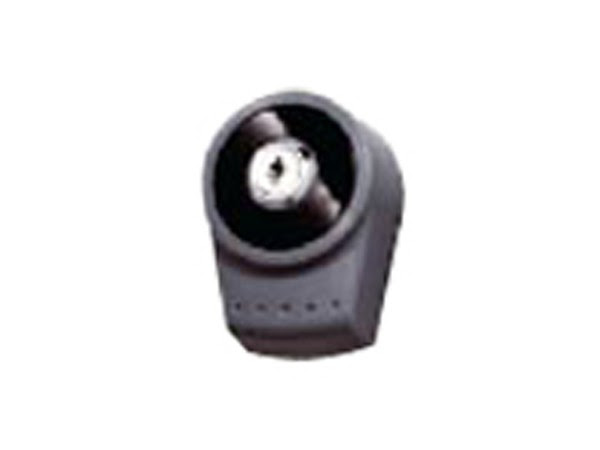

PKS-1
Key Selector
PPB-1
Push Button
PRB-1
Receive Box
PRK-1
Rack
